Description
Specifications:
- Chip Used: PL-2303HX7
- Input Voltage: 3.3V / 5V
- Voltage Level on RXD, TXD Pins: 3.3V
- Supported OS: Windows 98SE, 2000, XP, Vista, Windows 7, Mac OS 9, Mac OS X, Linux 2.4+
- Connector Type: Standard USB Type-A Male, TTL 6-Pin
- Pins Available:
- TX (UART Transmitter)
- RX (UART Receiver)
- 5V (Power Supply)
- 3.3V (Power Supply)
- GND (Ground)
- Size: 33mm x 16mm
- Package Includes:
- 1 x USB to TTL Converter
- 1 x Standard 4-Pin Female to Female Cable
- 1 x Driver CD
Package:
- 1 x USB to TTL Converter
- 1 x Standard 4-Pin Female to Female Cable
- 1 x Driver CD
Description:

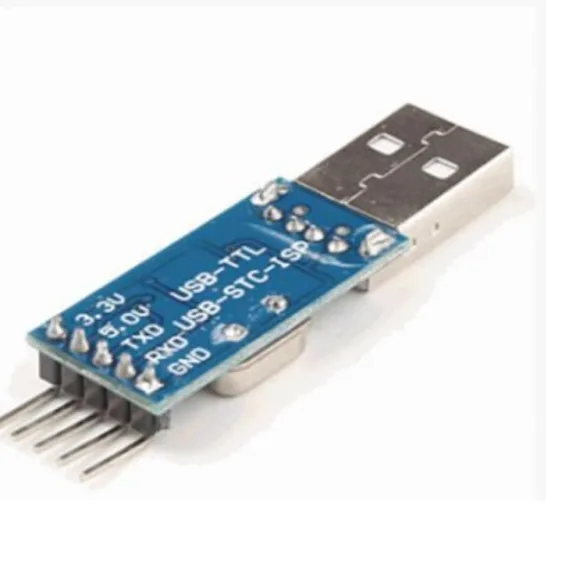

The USB PL2303 To TTL Converter allows you to connect your PC to a variety of serial (TTL level) devices. Whether you’re programming Arduino Pro Mini, interfacing with GPS devices, or upgrading firmware on routers, modems, or other devices, this adapter is a reliable tool. It supports high-speed data transfer and is equipped with 3.3V and 5V power supply interfaces for versatile usage.
The module is covered with a transparent heat-shrinkable sleeve, ensuring the safety of your board and offering excellent insulation.
FAQ:
- What is the purpose of this USB to TTL converter?
The USB to TTL converter is used to connect your PC to a serial TTL device, enabling communication for tasks like programming microcontrollers, GPS communication, and data exchange. - Can I use this module to program an Arduino Pro Mini?
No, this module is not recommended for Arduino Pro Mini programming. It’s more suited for devices that support serial bootloaders. - What is the maximum baud rate supported by this converter?
The maximum baud rate supported by the converter is 1.5 Mbps. - What operating systems are compatible with this converter?
This converter is compatible with Windows 98SE, 2000, XP, Vista, Windows 7, Mac OS 9, Mac OS X, and Linux 2.4+. - How do I install the drivers for this device?
You can download the latest drivers from the manufacturer’s website.
Update Driver issue: Please see this link
