Description
The DC High Voltage Arc Ignition Generator 1000KV is a compact pulse transformer module designed to convert a low-voltage DC input into a high-voltage pulsed output. It is commonly used for controlled laboratory demonstrations, ignition-related equipment testing, educational high-voltage experiments, and research applications.
DC High Voltage Arc Ignition Generator 1000KV একটি compact pulse transformer module, যা low-voltage DC input থেকে high-voltage pulse output তৈরি করে। এটি laboratory demonstration, ignition equipment testing, educational experiment এবং controlled research project-এ ব্যবহার করা হয়।
The module is sold under the “1000KV” model designation. Actual output voltage can vary significantly depending on input voltage, power supply capability, load, insulation, operating duration, and manufacturing batch. The stated 1000KV value should not be treated as a certified measurement.
Key Features | প্রধান বৈশিষ্ট্য
- Compact high-voltage pulse generator module
- Low-voltage DC input operation
- Produces high-voltage pulsed output
- Suitable for controlled ignition and testing applications

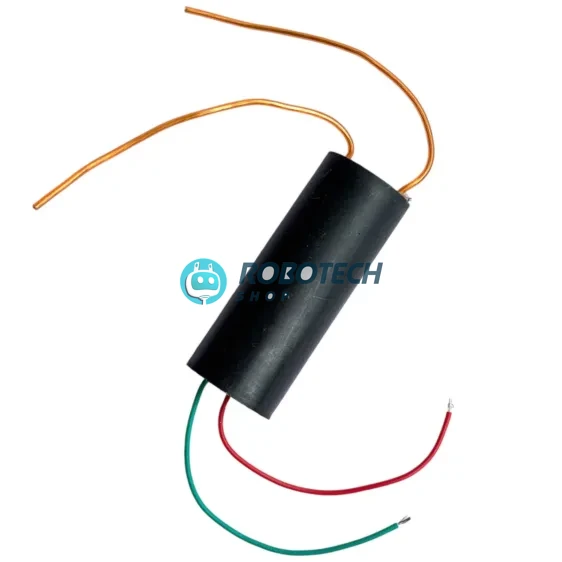

- Lightweight cylindrical design
- Pre-attached input and high-voltage output wires
- Useful for laboratory demonstrations and technical research
- Model designation: DC 1000KV
Applications | ব্যবহার ক্ষেত্র
- Controlled high-voltage demonstrations
- Educational physics experiments
- Ignition equipment testing
- Laboratory research projects
- Electrical insulation demonstrations
- High-voltage pulse testing by qualified technicians
- Technical training and academic demonstrations
This product is not intended for toys, pranks, personal protection, or unsupervised use.
Package Includes | প্যাকেজে যা থাকছে
- 1 × DC High Voltage Arc Ignition Generator Module
Specifications | স্পেসিফিকেশন
- Product Type: High-Voltage Pulse Generator Module
- Model: DC 1000KV
- Input Voltage: DC 3V–6V
- Input Current: Approximately 2A–5A, depending on operating conditions
- Output Type: High-voltage pulsed output
- Advertised Output Rating: 1000KV model designation

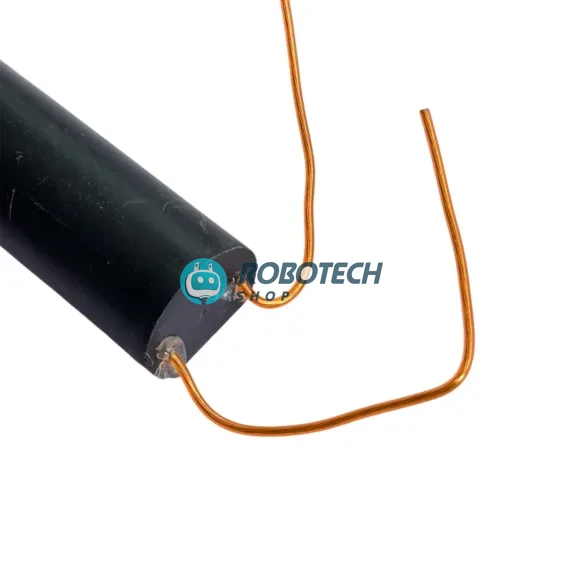

- High-Voltage Output Wire Length: Approximately 100mm

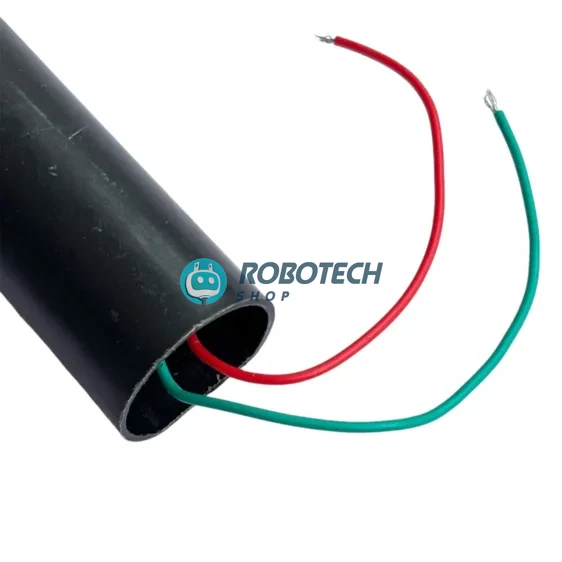

- Input Power Wire Length: Approximately 100mm
- Module Body: Insulated cylindrical housing
- Brand: SZFYDOSH, depending on stock batch
- High-Concerned Chemical: None declared by supplier
Important Accuracy Note | গুরুত্বপূর্ণ তথ্য
The “1000KV” label is widely used by suppliers as a product model or promotional rating. Small modules of this size generally do not provide a stable, laboratory-verified one-million-volt output.
“1000KV” নামটি সাধারণত supplier model বা promotional rating হিসেবে ব্যবহার করা হয়। এই আকারের module থেকে certified ও stable 1,000,000V output পাওয়া নিশ্চিত নয়।
Actual performance depends on:
- Input power quality
- Supply current capability
- Load conditions
- Insulation quality
- Operating temperature
- Product batch and construction
Safety Warning | নিরাপত্তা সতর্কতা
Danger: High-voltage pulses can cause electric shock, burns, fire, equipment damage, and involuntary muscle reactions.
- For use only by trained adults or qualified technicians
- Never touch the output wires while powered
- Disconnect all power before handling the module
- Do not use near flammable gas, fuel, vapour, dust, or liquids
- Keep away from children and pets
- Do not use on people or animals
- Keep away from pacemakers, medical devices, phones, computers, and sensitive electronics
- Use suitable insulation, enclosure, eye protection, and controlled laboratory procedures
- Do not operate continuously unless the supplier explicitly confirms the duty cycle
- Never use the module as a prank, weapon, or personal protection device
এই module থেকে বিপজ্জনক high-voltage pulse তৈরি হতে পারে। প্রশিক্ষিত ব্যক্তি ছাড়া ব্যবহার করা উচিত নয় এবং power ON অবস্থায় output wire স্পর্শ করা যাবে না।
Additional Information | অতিরিক্ত তথ্য
This module requires a low-voltage DC source capable of supplying sufficient current. An undersized or unstable power supply may cause poor performance, overheating, or supply shutdown.
এটি low-voltage input ব্যবহার করলেও output side অত্যন্ত বিপজ্জনক হতে পারে। তাই input voltage কম বলে module-টিকে নিরাপদ মনে করা উচিত নয়।
Product label, wire color, enclosure size, and internal construction may vary slightly depending on the manufacturing batch.
Frequently Asked Questions | FAQ
Q1: Does this module really produce exactly 1,000,000 volts?
The product is marketed as a “1000KV” module, but this should be treated as a model or promotional rating. Actual output may be substantially lower and requires specialized equipment to measure accurately.
Q2: What input voltage does it require?
The supplier specification indicates a DC input of approximately 3V–6V.
Q3: Can it be powered from a microcontroller pin?
No. A microcontroller GPIO pin cannot provide the required current and must not be used as the power source.
Q4: Is it safe for beginners?
No. This is a high-voltage component and should only be handled by trained adults or qualified technicians in a controlled environment.
Q5: Can it be used continuously?
Continuous operation is not recommended unless the manufacturer provides a confirmed duty-cycle rating. Small pulse modules may overheat during prolonged use.
Q6: Can it be used for school demonstrations?
Only under direct supervision of a qualified teacher or laboratory technician with suitable insulation, barriers, and safety procedures.
Q7: Is it suitable for ignition testing?
It may be used for controlled ignition-related equipment testing by qualified personnel, but it must never be operated near uncontrolled fuel, gas, vapour, or flammable materials.
Q8: Are the input and output wires included?
Yes. The module normally comes with pre-attached input and high-voltage output wires.
