Product Description

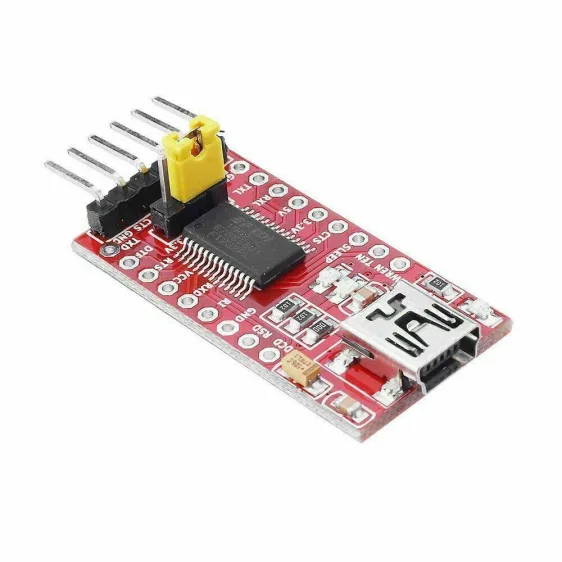

The FT232 USB to TTL Serial Adapter Module is a compact and reliable interface board designed to bridge USB and TTL-level serial communication. Powered by the FTDI FT232RL chip, this module allows seamless communication between your computer and microcontroller-based systems such as Arduino, Raspberry Pi, and other embedded platforms. It supports both 3.3V and 5V logic levels, making it highly versatile for a wide range of applications, including firmware flashing, debugging, and serial data logging.
Specifications
- Chipset: FTDI FT232RL
- Operating Voltage: Selectable 3.3V or 5V (via onboard jumper)
- USB Interface: Mini USB connector
- Data Transfer Rate: 300 Mbps to 3 Mbps
- Current Draw:
- 5V mode: up to 500mA
- 3.3V mode: up to 50mA
- EEPROM: 1024-bit for storing device descriptors and configuration
- LED Indicators: TX and RX activity LEDs
- Pinout: DTR, RXD, TXD, VCC, CTS, GND
- Driver Support: FTDI VCP and D2XX drivers (Windows, macOS, Linux)
- Dimensions: Approx. 36mm x 18mm
- Applications:
- Programming microcontrollers (e.g., Arduino Pro Mini)
- Serial communication with GPS modules, routers, and embedded systems
- USB to RS232/RS485/RS422 conversion
