Mini Soldering Iron Deluxe Kit

৳ 7,500

Out of stock

SKU: s2-2-02357 Categories: ,


Details from SeedStudio:


What is Mini Soldering Iron?

Mini Soldering Iron is a small, lightweight and rapid-heating (cold to 300℃ in 10 seconds) soldering iron with an OLED screen, which is perfect for kit building and other soldering applications.

This Mini Soldering Iron is programmable and the temperature can be controlled accurately from 100℃ to 400℃. Benefiting from the dual temperature and accelerator sensors, the soldering iron is equipped with the following two features to ensure users’ safety: sleeping mode and over-heating notification.

The iron tip is replaceable and we include 2 types of iron tips in this package.


Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron
Programmable system with free firmware upgrade, you could either program the temperate range or create your very own boot logo.
(adjust mode of gesture temperature will be coming soon)
Easy temperature control from 100℃ to 400℃.
Press Button A and B to heat up or cool the temperature down
We provide two types of iron tips “BC2” and “B2” to let you have more choices building your projects
Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron
Dual temperature and accelerator sensors enable your to have a better safety and smart control Small and lightweight enough allows users to easily bring it with them One package includes all the add-ons needed to use the Mini Soldering Iron for developing your projects


Screen OLED
USB Port Micro USB
Power Port DC5525
Operating Part Dimensions Length: 96mm, Diameter: 16.5mm
Heating Part Dimensions Length: 33mm, Diameter: 5.5mm
Weight 33g (power adaptor not included)
Power 65W
Adjustable Temperature Range 100℃ – 400℃
Temperature Stability ±2%
Voltage Input 100V-240V

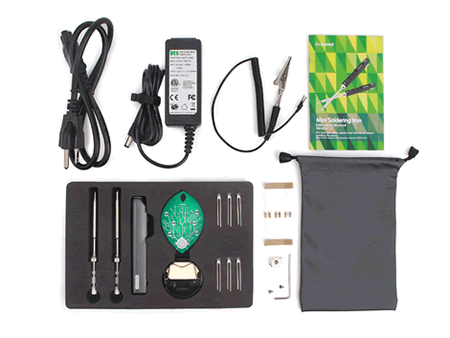

Part list

Mini Soldering Iron Deluxe Kit (US Standard)

  • Mini Soldering Iron Operating Part x 1
  • PCB soldering kit
  • Soldering Iron Tip Type-BC2 x 1
  • Earth Clamps x 1
  • Soldering Tron Tip Type-B2 x 1
  • User Manual x1
  • Soldering Iron Stand x 1
  • Small Carrying Bag x1
  • DC5525 Power Adapter x 1


Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Technical Details

Weight G.W 487g
Battery Exclude
