Product Specification:
- Rated Voltage: 12V DC
- Rated Current: <420mA
- Inflatable Flow: 2.5LPM (Liters Per Minute)
- Pressure Range: > +80kPa
- Maximum Vacuum: > -60kPa
- Inflatable Time: <10 seconds (for a 500cc tank from 0 to 300mmHg)
- Life Span: Over 30,000 cycles (500cc container, 10 seconds inflation, 5 seconds exhaust per cycle)
- Operating Temperature Range: 0°C to 55°C
- Weight: 60 grams
- Noise Level: 65dB
- Material: Aluminum and plastic
- Dimensions: 86.1mm x 65.4mm x 40mm
- Port Dimensions: Outer Diameter: 4mm, Inner Diameter: 3.5mm
- Wire Length: 380mm with 2 Pin Molex Connector
Product Description:

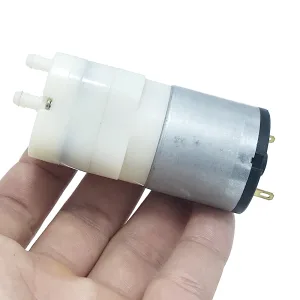

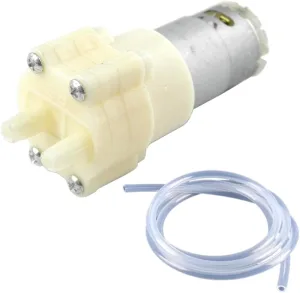

The Mini Air Pump DC 12V is a versatile and efficient pump designed for a variety of applications. With its compact size and lightweight design, it is perfect for use in small spaces and portable devices. The pump operates at a rated voltage of 12V DC and consumes less than 420mA of current, making it energy-efficient and suitable for battery-powered applications.
This mini air pump boasts an impressive inflatable flow rate of 2.5 liters per minute, allowing it to inflate small containers and devices quickly. It can generate a pressure range of over +80kPa and achieve a maximum vacuum of more than -60kPa, making it ideal for tasks that require both positive and negative pressure.
The pump’s durable construction ensures a long lifespan, with the ability to perform over 30,000 cycles under standard operating conditions. It operates within a temperature range of 0°C to 55°C, making it suitable for various environments and applications.
The Mini Air Pump DC 12V is designed with user convenience in mind. It features a low noise level of 65dB, ensuring quiet operation. The pump is made from high-quality aluminum and plastic materials, providing a robust and reliable performance. Its compact dimensions and lightweight design make it easy to integrate into various devices and systems.
