Description

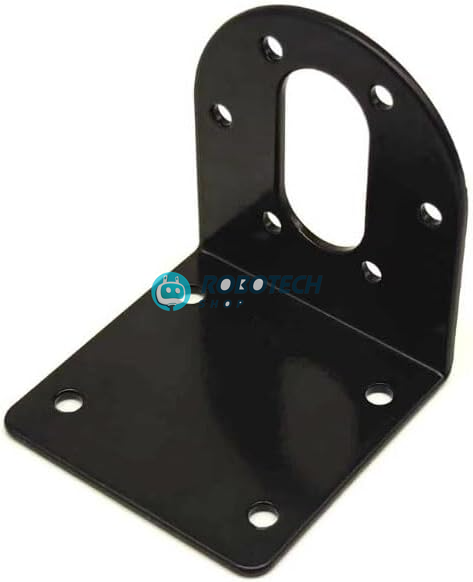

The L Clamp Bracket for 37GB Gear Motor is a strong metal mounting bracket designed for fixing 37GB / 37mm DC geared motors on robot chassis, smart car platforms, automation machines, mechanical frames and DIY robotics projects.
This bracket helps hold the motor firmly in position, making it easier to install the motor on acrylic, metal, wooden or custom robot chassis.
37GB Gear Motor L Clamp Bracket একটি metal mounting bracket, যা 37GB / 37mm DC gear motor chassis বা frame-এর সাথে সহজে mount করার জন্য ব্যবহার করা হয়। Robot car, automation project, DIY rover, mechanical system এবং engineering project-এ motor fixed position-এ রাখার জন্য এটি খুবই useful।
It comes with an L-shaped design, multiple mounting holes and a center motor shaft opening, making it suitable for strong and stable motor installation.
Product Highlights / প্রধান বৈশিষ্ট্য
✅ Suitable for 37GB / 37mm DC gear motor
✅ Strong L-type metal mounting bracket
✅ Helps fix motor securely on chassis or frame
✅ Multiple screw holes for flexible mounting
✅ Center opening for motor shaft alignment
✅ Durable metal body with black finish
✅ Easy to install in robot and automation projects
✅ Suitable for 2WD, 4WD and custom robot chassis
✅ Useful for DIY rover, smart car and mechanical projects
✅ Ideal for school, college, university and engineering projects
Applications / ব্যবহার ক্ষেত্র
• 37GB DC gear motor mounting
• Robot car chassis project
• DIY rover project
• 2WD / 4WD robot platform
• Arduino smart car project
• Automation machine motor fixing
• Mechanical frame motor support
• RC vehicle modification
• Robotics competition project
• Motorized trolley or small vehicle project
• Educational robotics and engineering project
• DIY mechanical structure building
Package Includes / প্যাকেজে যা থাকছে
✅ 1 × L Clamp Bracket for 37GB Gear Motor
⚠️ Note: Motor, screws, nuts, wheel, shaft coupler and chassis are not included unless mentioned separately.
Technical Specifications / স্পেসিফিকেশন
• Product Type: Motor Mounting Bracket / L Clamp
• Compatible Motor: 37GB / 37mm DC Gear Motor
• Bracket Type: L-Type / Right Angle Motor Bracket
• Material: Metal
• Color: Black
• Base Size: Approximately 40mm × 41mm
• Total Height: Approximately 48mm
• Motor Mounting Hole Area: Designed for 37GB motor front face
• Center Opening: For motor shaft / gearbox front alignment
• Mounting Method: Screw hole mounting
• Recommended Use: Robot chassis, motor mounting, automation and DIY mechanical projects
Dimension Details / সাইজ ডিটেইলস
• Base Length: Approximately 41mm
• Base Width: Approximately 40mm
• Vertical Height: Approximately 48mm
• Upper Hole Spacing: Approximately 13mm
• Side Mounting Area: Approximately 27mm
• Design: L-shaped right angle bracket with multiple mounting holes
⚠️ Manual measurement may have slight variation depending on stock batch.
Why Use This Motor Bracket?
A motor bracket is important for keeping the motor stable during movement. Without proper mounting, the motor may vibrate, become loose or lose alignment with the wheel or shaft. This 37GB motor L clamp provides a strong mounting position for robot chassis and mechanical systems.
Motor ঠিকভাবে mount না করলে robot চলার সময় vibration, loose fitting বা wheel alignment problem হতে পারে। এই 37GB Motor L Bracket motor কে strong এবং stable position-এ ধরে রাখতে সাহায্য করে।
Installation Guide / ইনস্টলেশন গাইড
- Place the 37GB motor on the vertical side of the bracket.
- Align the motor shaft with the center opening.
- Fix the motor using suitable screws and nuts.
- Attach the base side of the bracket to the robot chassis.
- Make sure the motor is straight and firmly tightened.
- Connect wheel/coupler after confirming motor alignment.
Important Notes / গুরুত্বপূর্ণ নোট
⚠️ Please check your motor size before ordering.
⚠️ This bracket is mainly for 37GB / 37mm gear motors.
⚠️ Screws and nuts may not be included unless clearly mentioned.
⚠️ Use proper screw size for motor and chassis mounting.
⚠️ Do not overtighten screws to avoid thread or bracket damage.
⚠️ Make sure motor shaft alignment is correct before final tightening.
⚠️ Product color, hole position and finishing may vary slightly depending on stock batch.
Frequently Asked Questions / FAQ
What is this bracket used for?
It is used to mount 37GB / 37mm DC gear motors on robot chassis, automation frames and DIY mechanical projects.
Is this suitable for 37GB gear motor?
Yes. This bracket is designed for 37GB / 37mm DC geared motors.
Is motor included?
No. This listing is for the L clamp bracket only unless motor is mentioned separately.
Are screws included?
Screws may not be included unless clearly mentioned in the package details.
Can I use it for robot car project?
Yes. It is suitable for robot car, DIY rover, smart car and automation projects.
Is it made of metal?
Yes. It is a metal L-type motor mounting bracket.
Can I use it with other motors?
It may fit similar motors, but fitting depends on motor size and mounting hole position. Please check compatibility before ordering.
L Clamp Bracket for 37GB Gear Motor Metal Motor Mount
Buy L clamp bracket for 37GB gear motor metal L-type motor mount for robot chassis, DIY rover, Arduino robot car, automation and mechanical projects in Bangladesh.
