Product Features
- Operation Modes: The switch can be set to automatic, off, or rotary modes, making it versatile for different applications.
- Current Rating: Capable of handling up to 10 amps, this switch is suitable for circuits that require higher current ratings.
- Operating Voltage: With a 400-volt operating capacity, it is suitable for high-voltage applications.
- Contact Types: It includes both normally open (NO) and normally closed (NC) contacts, offering flexibility in circuit design.
- Switch Type: As a rotary switch, it offers a smooth and precise switching action.
- Material Composition: Built from durable plastic and metal, ensuring longevity and reliability in various environments.
- Circuit Type: The switch is designed as a 2-way circuit, which can be configured for different operations.
- Mounting Type: Designed for panel mount installation, it is easy to integrate into existing panels or enclosures.
- Actuator Type: Features a rotary actuator, enabling easy and intuitive operation.
- International Protection Rating: Rated for use with up to 440 volts, ensuring safety and compliance with international standards.
Specifications

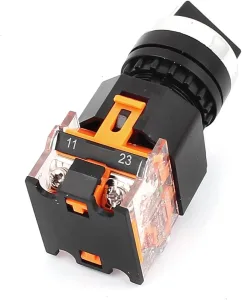

- Product Name: Rotary Switch / Selector Switch.
- Net Weight: Weighs 96 grams, making it lightweight and easy to handle during installation.
- Package Content: Each package contains 2 rotary switches, providing a spare or the ability to use them in multiple applications.
- Model: The specific model number is LA38-203, for reference in specifications and compatibility.
- Main Colors: The switch features a combination of black, orange, and clear components, making it visually distinctive.
- Panel Thickness Fit: This product accommodates panels up to a maximum of 5mm (0.2 inches) and is adjustable for different panel thicknesses.
- Pole and Throw Configuration: Features a 1NO + 1NC (Double Pole Single Throw, DPST) configuration, offering multiple wiring options.
- Operation Type: The switch operates in a latching (self-locking) manner, staying in the set position until manually changed.
- Total Size: Measures 78mm x 40mm x 30mm (3 inches x 1.6 inches x 1.2 inches) in length, width, and height.
- Terminal Quantity: Equipped with 4 terminals, providing sufficient connections for diverse circuit designs.
