Description
Specifications: RJ45 Adapter Board Module 8P Modular Ethernet Connector:
General Overview:
– The RJ45 Adapter Board Module is designed for splitting or adapting Ethernet connections. It enables seamless connectivity and prototyping for Ethernet-based applications in embedded systems and networking projects.
Key Features:
1. Connector Type: RJ45 (8P8C) Modular Jack.
2. Board Type: Adapter module with PCB-mounted RJ45 port.
3. Compatibility:
– Standard Ethernet cables (Cat5, Cat5e, Cat6).
– Complies with IEEE 802.3 Ethernet standards.
4. Network Protocol Support:
– 10/100 Mbps Ethernet.
– Gigabit Ethernet (optional, based on module capabilities).
5. Compact Design
– Small, lightweight module for easy integration.

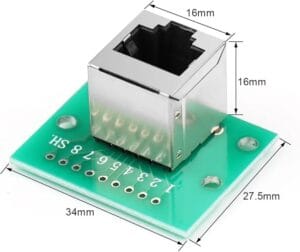

– Dimensions: Approximately 34mm x 27.5mm x 16mm
Electrical Specifications:
1. Voltage
– Operating voltage: 3.3V–5V.
2. Current Rating:
– Typical: <100mA (idle state).
– Maximum: 200mA (depends on the attached device).
3. Signal Integrity:
– Supports high-speed data transfer with low crosstalk.
– Built-in magnetics (optional) for isolation and signal conditioning
Interface:
Input/Output Pins
– Standard RJ45 Ethernet port
Mechanical and Environmental:
1. PCB Material: FR4 PCB with high-quality copper traces.
2. Operating Temperature: -20°C to 70°C.
3. Storage Temperature**: -40°C to 85°C.
4. Durability:
– Insertion cycles: >1000 insertions.
Applications:
1. Networking hardware development.
2. Ethernet connectivity for IoT devices.
3. Embedded system prototyping.
4. Industrial Ethernet interfaces.
5. Ethernet data splitting and extension.
