Description
High-Performance ARM Cortex-M4 Development Board for Embedded System, Robotics, IoT, Automation & STM32 Learning Projects
The STM32F407VGT6 Development Board is a powerful STM32F4 series microcontroller learning board designed for embedded system development, robotics, IoT projects, sensor interfacing, motor control, data logging, communication projects and advanced microcontroller programming.
This board is based on the STM32F407VGT6 ARM Cortex-M4 microcontroller, which provides high-speed processing, rich peripheral support and professional development capability for students, engineers, researchers and electronics hobbyists.
এই STM32F407VGT6 Development Board embedded system, robotics, IoT, automation, motor control, sensor interfacing এবং advanced microcontroller learning-এর জন্য ব্যবহার করা হয়। এটি Arduino বা basic microcontroller board-এর তুলনায় অনেক বেশি powerful এবং advanced project-এর জন্য suitable।
This version comes with a USB Type-C port, compact black PCB design, onboard reset/boot option, multiple GPIO pins and header pins for easy prototyping.
Product Highlights / প্রধান বৈশিষ্ট্য
✅ Based on STM32F407VGT6 microcontroller
✅ Powerful ARM Cortex-M4 32-bit MCU
✅ CPU speed up to 168MHz
✅ 1MB Flash memory for larger firmware projects
✅ USB Type-C port for convenient connection
✅ Suitable for STM32 learning and professional embedded projects
✅ Supports STM32CubeIDE, Keil, IAR and STM32CubeProgrammer
✅ Rich peripheral support: GPIO, UART, SPI, I2C, ADC, DAC, PWM, CAN, USB and more
✅ Header pins included for soldering and prototyping
✅ Ideal for robotics, automation, IoT, motor control and data acquisition projects
Applications / ব্যবহার ক্ষেত্র
• STM32 microcontroller learning
• Embedded system development
• Robotics controller project
• IoT device development
• Sensor interfacing project
• Motor control and PWM project
• Industrial automation learning
• Communication protocol project
• Data logging system
• CAN bus experiment
• USB device project
• Smart control system
• University electronics and engineering project
• Advanced microcontroller training

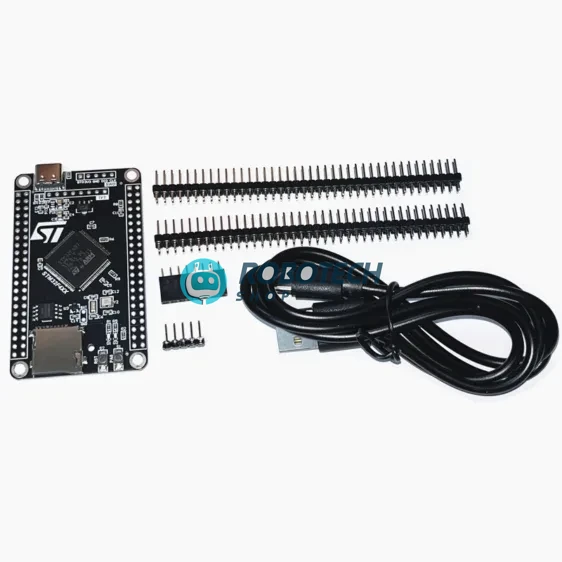

Package Includes / প্যাকেজে যা থাকছে
✅ 1 × STM32F407VGT6 Development Board Type-C
✅ 1 × USB Type-C Cable
✅ Header pin set
✅ Small connector/header accessories depending on stock batch
⚠️ Note: ST-Link programmer, sensors, breadboard and jumper wires are not included unless mentioned separately.
Technical Specifications / স্পেসিফিকেশন
• Product Type: STM32 Development Board
• MCU Model: STM32F407VGT6
• MCU Series: STM32F4
• Core: ARM Cortex-M4
• CPU Speed: Up to 168MHz
• Flash Memory: 1MB
• SRAM: 192KB
• Logic Level: 3.3V
• USB Port: Type-C
• Programming Interface: SWD / ST-Link recommended
• Development Software: STM32CubeIDE, Keil, IAR, STM32CubeProgrammer
• GPIO: Multiple GPIO pins available on side headers
• Communication Interfaces: UART, SPI, I2C, CAN, USB and others depending on MCU pin configuration
• Analog Features: ADC input and DAC output supported
• PWM Support: Yes
• Board Type: Compact STM32F4 learning / system board
• Recommended Use: Embedded system, robotics, IoT, automation and STM32 learning projects
Important Interfaces / গুরুত্বপূর্ণ ইন্টারফেস
• GPIO: Sensor, LED, switch and control circuit connection
• UART: GPS, GSM, Bluetooth and serial module communication
• SPI: Display, memory card, RF module and high-speed peripheral connection
• I2C: Sensor module, OLED display, RTC and EEPROM connection
• ADC: Analog sensor input reading
• DAC: Analog output supported by MCU
• PWM: Motor control, servo control and LED dimming
• CAN: Automotive and industrial communication experiment
• USB: USB communication and device development depending on firmware setup
• SWD: Programming and debugging using ST-Link
Programming & Development / প্রোগ্রামিং গাইড
Recommended programming tools:
• STM32CubeIDE – Official STM32 development IDE
• STM32CubeProgrammer – Firmware flashing tool
• ST-Link V2 / ST-Link V3 – Recommended programmer/debugger
• Keil MDK – ARM embedded development IDE
• IAR Embedded Workbench – Professional embedded IDE
For beginners, STM32CubeIDE + ST-Link programmer is the recommended setup.
Basic ST-Link Connection
For SWD programming:
• ST-Link SWDIO → Board SWDIO
• ST-Link SWCLK → Board SWCLK
• ST-Link GND → Board GND
• ST-Link 3.3V → Board 3.3V, if powering from programmer is supported
• NRST → Reset, optional but recommended
⚠️ Always check the pin marking on the board before connecting.
Important Notes / গুরুত্বপূর্ণ নোট
⚠️ This board uses 3.3V logic level. Do not directly connect 5V signals to non-5V tolerant pins.
⚠️ Header pins may need soldering before use.
⚠️ ST-Link programmer is recommended for easy programming and debugging.
⚠️ Bootloader availability may vary depending on board batch.
⚠️ Always check the board pinout before connecting external modules.
⚠️ USB Type-C cable is included, but programming method depends on firmware and board design.
⚠️ Product PCB marking, connector layout and included accessories may vary slightly depending on stock batch.
⚠️ This is a development board only; sensors, programmer and external modules are not included unless mentioned separately.
Frequently Asked Questions / FAQ
What is this board used for?
It is used for STM32 learning, embedded system development, robotics, IoT, automation, communication and advanced microcontroller projects.
Which microcontroller is used in this board?
This board uses the STM32F407VGT6 microcontroller.
Does it have Type-C port?
Yes, this version comes with a USB Type-C port.
How much Flash memory does STM32F407VGT6 have?
STM32F407VGT6 commonly has 1MB Flash memory.
Do I need ST-Link?
Yes, ST-Link programmer/debugger is recommended for easy firmware upload and debugging.
Can I use it with sensors?
Yes. It supports many sensor modules through GPIO, ADC, UART, SPI and I2C.
Is it suitable for beginners?
It is suitable for learners who want to move into advanced STM32 microcontroller development.
Is it 5V tolerant?
The board works mainly at 3.3V logic. Some STM32 pins may be 5V tolerant, but not all. Always check the datasheet before applying 5V signal.
