Description
The LGT8F328P-LQFP32 MiniEVB Development Board is a compact Arduino-compatible microcontroller board designed as a powerful and cost-effective alternative to the traditional Arduino Pro Mini ATmega328P. It is based on the LGT8F328P microcontroller, which offers Arduino-style programming support, compact size, and improved performance for many DIY electronics, robotics, IoT, sensor, and automation projects.
LGT8F328P-LQFP32 MiniEVB একটি ছোট আকারের Arduino-compatible development board, যা অনেক ক্ষেত্রে Arduino Pro Mini ATmega328P-এর বিকল্প হিসেবে ব্যবহার করা যায়। এটি LGT8F328P microcontroller ভিত্তিক এবং Arduino IDE দিয়ে programming করা যায়, তাই student, maker, robotics learner এবং electronics project developer-দের জন্য এটি একটি ভালো low-cost option।
This board is suitable for users who need a small programmable controller for embedded projects but want better performance and more flexibility compared to standard Pro Mini boards.
Key Features | প্রধান বৈশিষ্ট্য
- LGT8F328P-LQFP32 microcontroller based MiniEVB board
- Arduino IDE compatible with proper board package
- Can be used as an alternative to Arduino Pro Mini ATmega328P
- Compact size for embedded and portable projects
- Supports digital I/O, analog input, PWM, UART, I2C, and SPI
- Suitable for low-cost microcontroller projects
- Better performance potential than standard ATmega328P boards
- Onboard reset button
- Breadboard and PCB project friendly pin layout
- Ideal for robotics, automation, IoT, and DIY electronics
Applications | ব্যবহার ক্ষেত্র
- Arduino compatible DIY projects
- Robotics controller
- Sensor data monitoring
- IoT prototype development
- Home automation circuits
- Small embedded controller projects
- Battery-powered electronics
- Educational microcontroller learning
- LED control, relay control, motor control projects
- Replacement option for many Arduino Pro Mini type projects
Package Includes | প্যাকেজে যা থাকছে
- 1 × LGT8F328P-LQFP32 MiniEVB Development Board
- Header pins may be included depending on stock batch
Specifications | স্পেসিফিকেশন
- Product Type: Arduino Compatible Development Board
- Model: LGT8F328P-LQFP32 MiniEVB
- Microcontroller: LGT8F328P
- Package Type: LQFP32
- Compatibility: Arduino IDE with LGT8F board support package
- Alternative For: Arduino Pro Mini / ATmega328P-based projects
- Supported Functions: Digital I/O, analog input, PWM, UART, I2C, SPI
- Programming Method: USB-to-TTL serial adapter required
- Reset Button: Available
- Recommended Use: Robotics, IoT, automation, embedded projects, DIY electronics
Important Compatibility Note | গুরুত্বপূর্ণ সামঞ্জস্য নোট
This board is Arduino-compatible, but it is not an original ATmega328P chip. It uses the LGT8F328P MCU, so you may need to install the correct LGT8F board package in Arduino IDE before uploading code.
এই board টি Arduino IDE দিয়ে ব্যবহার করা যায়, কিন্তু এটি original ATmega328P নয়। এতে LGT8F328P microcontroller ব্যবহার করা হয়েছে। তাই Arduino IDE-তে code upload করার আগে LGT8F board package install করা লাগতে পারে।
For most simple Arduino projects such as LED blinking, sensor reading, relay control, motor control, and serial communication, it can work as a very useful Pro Mini alternative. For special libraries, timing-sensitive projects, or direct register-level code, compatibility should be checked before use.
How to Program | প্রোগ্রাম করার নিয়ম
To upload code, you usually need a USB-to-TTL serial converter because this MiniEVB board does not include a built-in USB programmer.
Basic connection:
- USB TTL TX → Board RX
- USB TTL RX → Board TX
- USB TTL VCC → Board VCC
- USB TTL GND → Board GND
- DTR connection may be used for auto reset if supported

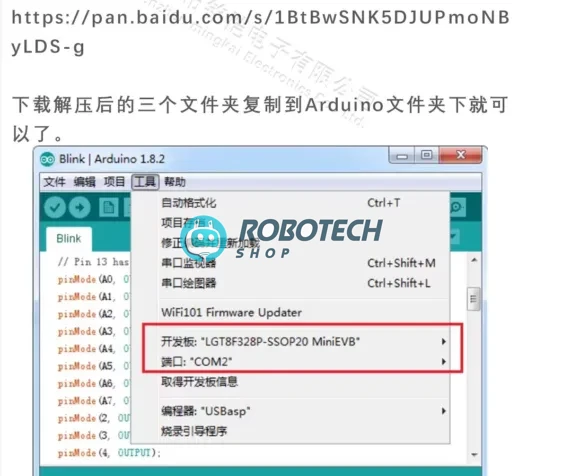

Arduino IDE setup:
- Install the required LGT8F328P board support package
- Select the correct LGT8F board model from Arduino IDE
- Select the correct COM port
- Upload your Arduino sketch
Arduino Example Code
void setup() {
pinMode(13, OUTPUT);
}
void loop() {
digitalWrite(13, HIGH);
delay(500);
digitalWrite(13, LOW);
delay(500);
}This basic Blink code can be used to test the board after selecting the correct board package and COM port.
Why Choose LGT8F328P MiniEVB?
The LGT8F328P MiniEVB is a practical choice for makers who want a compact and affordable Arduino-compatible board. It is especially useful when you need a small controller similar to Pro Mini but want a modern alternative with flexible features.
এই board টি ছোট, সাশ্রয়ী এবং Arduino-compatible হওয়ায় robotics, automation, sensor-based project এবং embedded control system-এর জন্য ভালো পছন্দ।
Important Notes | গুরুত্বপূর্ণ নোট
- This board requires a USB-to-TTL programmer for code upload.
- Install the correct LGT8F board package before programming.
- It is not the same chip as ATmega328P, although many Arduino sketches can run with proper setup.
- Always check voltage compatibility before connecting sensors or modules.
- Some Arduino libraries may need testing before final project use.
- Product PCB color, pin marking, and component layout may vary depending on supplier batch.
Frequently Asked Questions | FAQ
Q1: Is this board the same as Arduino Pro Mini?
No. It is similar in use and size, but it uses an LGT8F328P microcontroller, not ATmega328P.
Q2: Can I use Arduino IDE?
Yes. You can use Arduino IDE after installing the proper LGT8F328P board support package.
Q3: Does it have built-in USB?
No. Usually, this board requires an external USB-to-TTL serial converter for programming.
Q4: Can it replace Arduino Pro Mini?
For many simple projects, yes. It can be used as a Pro Mini alternative, but library and pin compatibility should be checked.
Q5: Can I use it for robotics projects?
Yes. It is suitable for sensor reading, motor control, relay control, LED control, and small robotics projects.
Q6: Does it support I2C and SPI?
Yes. It supports common interfaces such as UART, I2C, and SPI depending on pinout.
Q7: Is it beginner-friendly?
Yes, but beginners should know that board package installation and USB-to-TTL programming are required.
