Description
Product Description
The Multi-Range Variable Potentiometer Series offers precise resistance control for a variety of electronic applications. Available in 1KΩ, 10KΩ, and 100KΩ variants, these potentiometers provide smooth and reliable adjustment for voltage regulation, signal tuning, and circuit calibration. Whether you’re working on audio equipment, instrumentation, or DIY electronics, this series ensures flexibility and accuracy in resistance control.
Specifications
1KΩ Potentiometer
- Resistance Value: 1KΩ
- Type: Rotary Potentiometer
- Power Rating: 0.3W
- Maximum Voltage: 200V DC
- Tolerance: ±10%
- Rotational Life: Up to 15,000 cycles
- Mounting Type: Through-hole or panel mount

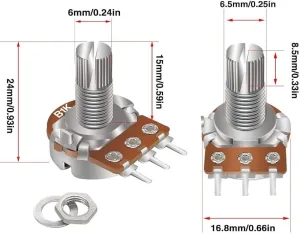

- Shaft Length: 15mm
- Shaft Diameter: 6mm
- Material: Carbon film or wire-wound construction
- Applications: Voltage regulation, circuit calibration, and signal tuning
10KΩ Potentiometer
- Resistance Value: 10KΩ
- Type: Rotary Potentiometer
- Power Rating: 0.3W
- Maximum Voltage: 200V DC
- Tolerance: ±10%
- Rotational Life: Up to 15,000 cycles
- Mounting Type: Through-hole or panel mount
- Shaft Length: 15mm
- Shaft Diameter: 6mm
- Material: Carbon film or wire-wound construction
- Applications: Audio volume control, signal tuning, and circuit calibration
100KΩ Potentiometer
- Resistance Value: 100KΩ
- Type: Rotary Potentiometer
- Power Rating: 0.3W
- Maximum Voltage: 200V DC
- Tolerance: ±10%
- Rotational Life: Up to 15,000 cycles
- Mounting Type: Through-hole or panel mount
- Shaft Length: 15mm
- Shaft Diameter: 6mm
- Material: Carbon film or wire-wound construction
- Applications: Precision tuning, sensor calibration, and voltage adjustment
