Product Description
The L293D Motor Driver Shield is an expansion board designed to control multiple motors with ease. This shield is based on the L293D motor driver chip, which provides bidirectional drive currents of up to 1.2A per bridge with thermal shutdown protection. It is capable of driving up to 4 bidirectional DC motors with individual 8-bit speed selection or 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping. The shield features 4 H-bridges, each providing up to 0.6A per bridge (1.2A peak) at voltages from 4.5V to 36V. It also includes pull-down resistors to keep the motors disabled during power-up and a 2-pin terminal block for separate logic and motor external power supplies. Compatible with Arduino Mega, Diecimila, and Duemilanove, this motor driver shield is perfect for various DIY projects and robotics applications.
Specifications
- Chip: L293D
- Number of H-Bridges: 4
- Drive Current: 0.6A per bridge (1.2A peak)
- Voltage Range: 4.5V to 36V
- Motor Control: Up to 4 bidirectional DC motors or 2 stepper motors
- Speed Selection: 8-bit individual speed selection
- Protection: Thermal shutdown protection
- Power Supply: Separate logic and motor external power supplies
- Compatibility: Arduino Mega, Diecimila, Duemilanove
- Dimensions: 69mm x 53mm
- Applications: DIY projects, robotics, motor control

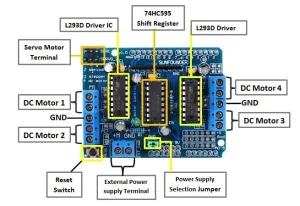

Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects.
1.2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer – no jitter!
2. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
3. Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
4.4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to 25V
5. Pull down resistors keep motors disabled during power-up
6. Big terminal block connectors to easily hook up wires (10-22AWG) and power
7. Arduino reset button brought up top
8.2-pin terminal block to connect external power, for separate logic/motor supplies
9. Tested compatible with Mega, Diecimila, & Duemilanove
